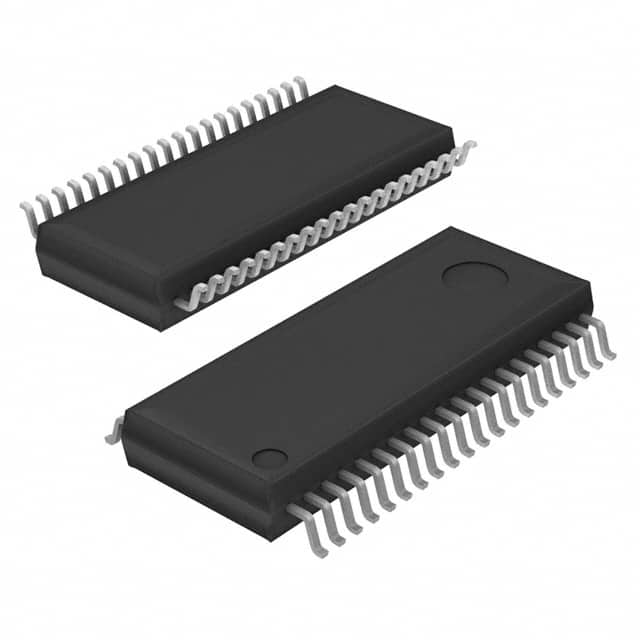

MAX7219EWG+T
- Part Number: MAX7219EWG+T
- Categories:
- Manufacturer: Analog Devices Inc./Maxim Integrated
- MOQ: 1PCS
- In Stock: 2586
- Datasheet:
- Description: IC DRVR 7 SEGMNT 8 DIGIT 24SOIC
- Payment method: Paypal/Wire transfer/Visa
- Delivery Method: UPS/DHL/FEDEX/EMS
Reference Price (In US Dollars)
- 1 Pcs$8.134
- 10 Pcs$7.747
- 100 Pcs$7.378
- 1000 Pcs$7.233
- 10000 Pcs$7.233
Quick Request Quote
Payment Methods
Delivery Services
Note: Since the price has fluctuated greatly from last year to the present, the price only for reference. Please submitan inquiry or sent email to
[email protected] let us quote you a best price.
Specifications
Reviews
Packaging
MAX7219EWG+T Specifications
| Manufacturer | Analog Devices Inc./Maxim Integrated |
| Interface | 4-Wire Serial |
| Display Type | LED |
| Configuration | 7 Segment + DP |
| Mounting Type | Surface Mount |
| Package / Case | 24-SOIC (0.295", 7.50mm Width) |
| Product Status | Active |
| Current - Supply | 330 mA |
| Voltage - Supply | 4V ~ 5.5V |
| Digits or Characters | 8 Digits |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 24-SOIC |
