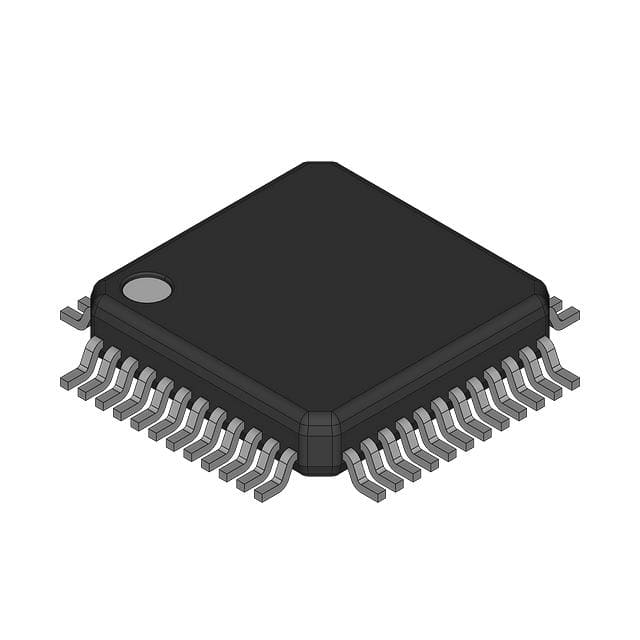

LM4540VHX
- Part Number: LM4540VHX
- Categories:
- Manufacturer: Texas Instruments
- MOQ: 1PCS
- In Stock: 26580
- Datasheet:
- Description: IC AUDIO CODEC '97 18BIT 48LQFP
- Payment method: Paypal/Wire transfer/Visa
- Delivery Method: UPS/DHL/FEDEX/EMS
Reference Price (In US Dollars)
- 1 Pcs$16.614
- 10 Pcs$15.823
- 100 Pcs$15.069
- 1000 Pcs$14.774
- 10000 Pcs$14.774
Quick Request Quote
Payment Methods
Delivery Services
Note: Since the price has fluctuated greatly from last year to the present, the price only for reference. Please submitan inquiry or sent email to
[email protected] let us quote you a best price.
Specifications
Reviews
Packaging
LM4540VHX Specifications
| Manufacturer | Texas Instruments |
| Type | Audio, AC '97 |
| Sigma Delta | Yes |
| Mounting Type | Surface Mount |
| Data Interface | Serial |
| Package / Case | 48-LQFP |
| Product Status | Discontinued at Digi-Key |
| Resolution (Bits) | 18 b |
| Number of ADCs / DACs | 2 / 2 |
| Operating Temperature | -40°C ~ 85°C |
| Supplier Device Package | 48-LQFP (7x7) |
| Voltage - Supply, Analog | 4.2V ~ 5.5V |
| Voltage - Supply, Digital | 3V ~ 5.5V |
| S/N Ratio, ADCs / DACs (db) Typ | - |
| Dynamic Range, ADCs / DACs (db) Typ | 90 / 89 |
0 reviews
0.0
I Reviews
Write Your Own Review
Nickname
Review
LM4540VHX Packaging
step1: Inspect Products
step2: Vacuum Packaging
step3: Anti-Static Bag
step4: Individual Packing
step5: Packing Box
step6：Shipping Tag
- Before shipping, we will inspect the parts to ensure it in good condition and check that the parts are brand-new and original with the datasheet. And then, all the products will be packed in an anti-static bag.
- After ensuring that there are no issues with any of the goods after packing, we will wrap them carefully and send them by international express. It demonstrates exceptional seal integrity, outstanding tear and puncture resistance, and both.
Manufacturer Overview
Texas Instruments (TI) establishes itself as a known global semiconductor producer with operations in 35 nations. It has expanded quickly. The first operational integrated circuit was released by TI in 1958. And as of right now, more than 30,000 TI employees globally are dedicated to designing, producing, and marketing chips for embedded and analog processing. They want to use technology to solve problems and transform the world.
Some of TI's notable product lines include the MSP430 and Tiva C Series microcontrollers, which are widely used in embedded systems and Internet of Things (IoT) applications. The company's analog products, such as operational amplifiers and voltage regulators, are highly regarded for their performance and reliability.
