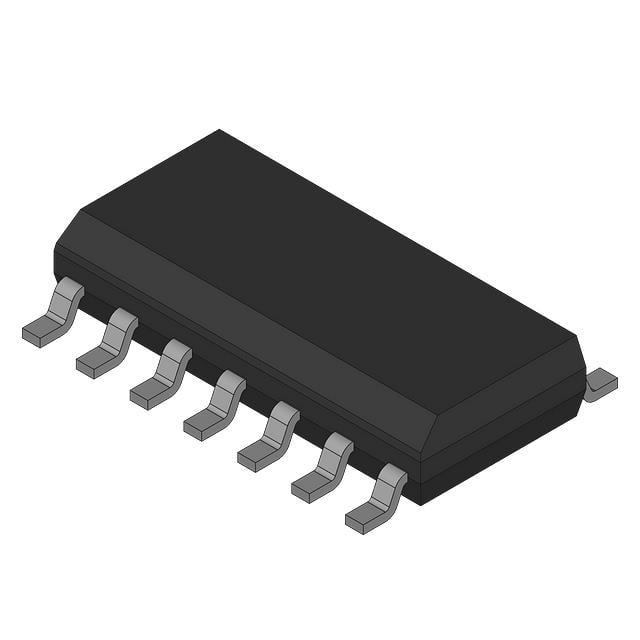

HCF4047M013TR
- Part Number: HCF4047M013TR
- Categories:
- Manufacturer: STMicroelectronics
- MOQ: 1PCS
- In Stock: 7246
- Datasheet:
- Description: IC MULTIVIBRATOR 125NS 14SO
- Payment method: Paypal/Wire transfer/Visa
- Delivery Method: UPS/DHL/FEDEX/EMS
Reference Price (In US Dollars)
- 1 Pcs$0.155
- 10 Pcs$0.148
- 100 Pcs$0.141
- 1000 Pcs$0.138
- 10000 Pcs$0.138
Quick Request Quote
Payment Methods
Delivery Services
Note: Since the price has fluctuated greatly from last year to the present, the price only for reference. Please submitan inquiry or sent email to
[email protected] let us quote you a best price.
Specifications
Reviews
Packaging
Datasheets
HCF4047M013TR Specifications
| Manufacturer | STMicroelectronics |
| Logic Type | Astable, Monostable |
| Mounting Type | Surface Mount |
| Package / Case | 14-SOIC (0.154", 3.90mm Width) |
| Product Status | Obsolete |
| Voltage - Supply | 3 V ~ 20 V |
| Propagation Delay | 125 ns |
| Independent Circuits | 1 |
| Operating Temperature | -55°C ~ 125°C |
| Schmitt Trigger Input | No |
| Supplier Device Package | 14-SO |
| Current - Output High, Low | 6.8mA, 6.8mA |
