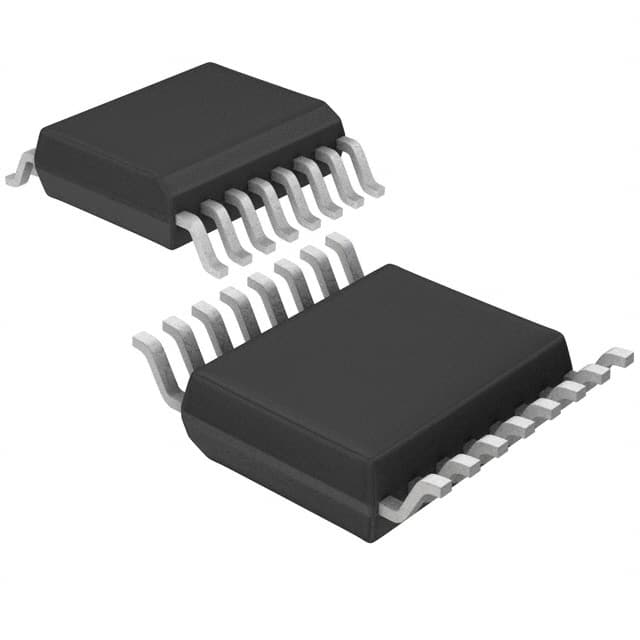

ADM1023ARQZ-R7
- Part Number: ADM1023ARQZ-R7
- Categories:
- Manufacturer: onsemi
- MOQ: 1PCS
- In Stock: 1050
- Datasheet:
- Description: IC TEMP SENSOR DUAL PREC 16QSOP
- Payment method: Paypal/Wire transfer/Visa
- Delivery Method: UPS/DHL/FEDEX/EMS
Reference Price (In US Dollars)
- 1 Pcs$2.384
- 10 Pcs$2.271
- 100 Pcs$2.163
- 1000 Pcs$2.12
- 10000 Pcs$2.12
Quick Request Quote
Payment Methods
Delivery Services
Note: Since the price has fluctuated greatly from last year to the present, the price only for reference. Please submitan inquiry or sent email to
[email protected] let us quote you a best price.
Specifications
Reviews
Packaging
Datasheets
ADM1023ARQZ-R7 Specifications
| Manufacturer | onsemi |
| Accuracy | ±1°C Local, ±3°C Remote |
| Function | Temp Monitoring System (Sensor) |
| Topology | ADC, Comparator, Multiplexer, Register Bank |
| Output Fan | No |
| Output Type | SMBus |
| Sensor Type | Internal and External |
| Output Alarm | Yes |
| Mounting Type | Surface Mount |
| Package / Case | 16-SSOP (0.154", 3.90mm Width) |
| Product Status | Obsolete |
| Voltage - Supply | 3V ~ 5.5V |
| Sensing Temperature | 0°C ~ 120°C, External Sensor |
| Operating Temperature | 0°C ~ 120°C |
| Supplier Device Package | 16-QSOP |
