STM32F429IGT6 is a High-performance advanced line, Arm Cortex-M4 core with DSP and FPU, 1 Mbyte of Flash memory, 180 MHz CPU, ART Accelerator, Chrom-ART Accelerator, FMC with SDRAM, TFT. This datasheet provides the description, Pinout, CAD Model, and Features of the STM32F429IGT6.
Catalog

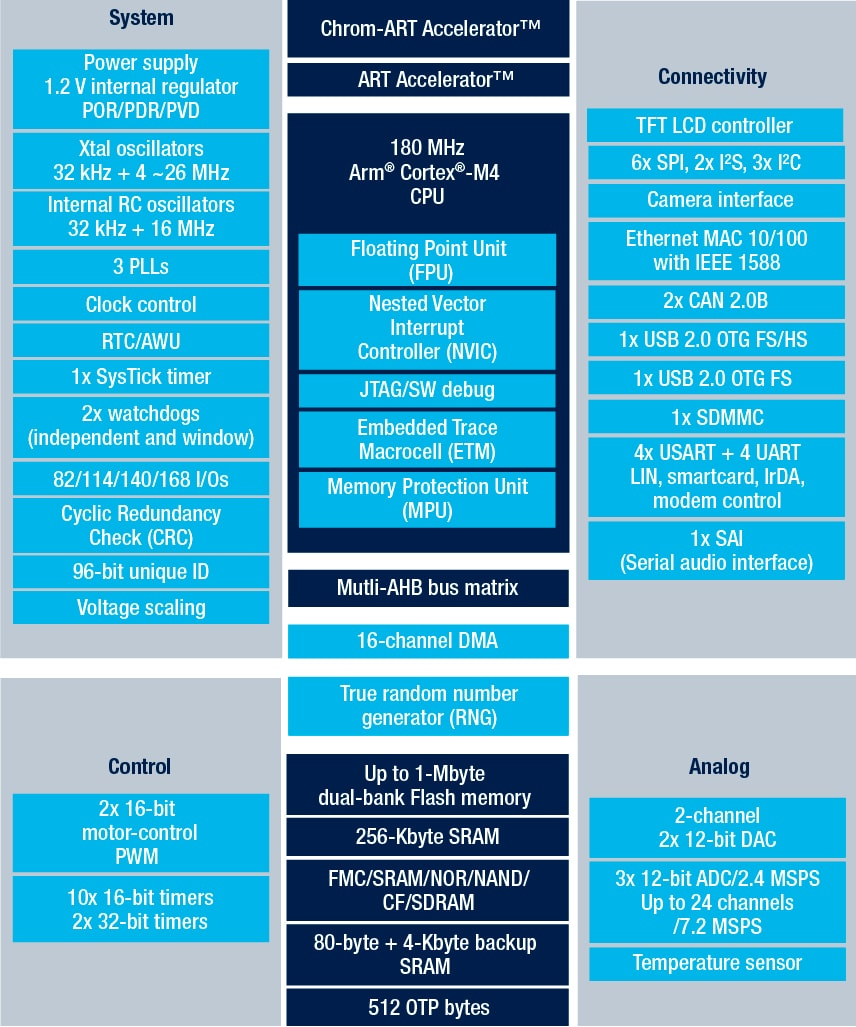

The STM32F427xx and STM32F429xx devices are based on the high-performance Arm® Cortex®-M4 32-bit RISC core operating at up to 180 MHz. The Cortex-M4 core features a Floating point unit (FPU) single precision which supports all Arm® single-precision data-processing instructions and data types. It also implements a complete set of DSP instructions and a memory protection unit (MPU), enhancing application security.
The STM32F427xx and STM32F429xx devices incorporate high-speed embedded memories (Flash memory up to 2 Mbyte, up to 256 Kbytes of SRAM), up to 4 Kbytes of backup SRAM, and an extensive range of enhanced I/Os and peripherals connected to two APB buses, two AHB buses, and a 32-bit multi-AHB bus matrix.
All devices offer three 12-bit ADCs, two DACs, a low-power RTC, twelve general-purpose 16-bit timers including two PWM timers for motor control, and two general-purpose 32-bit timers. They also feature standard and advanced communication interfaces.

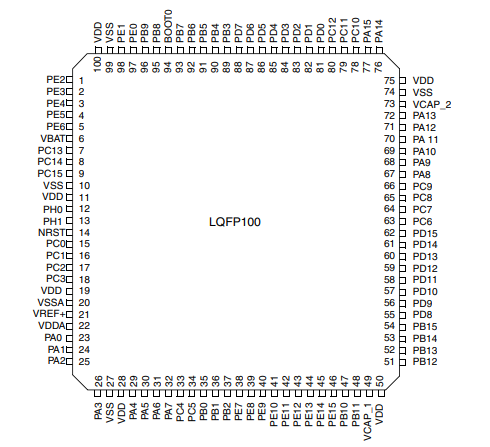

Figure1-STM32F429IGT6 Pinout
Note: Please check the STM32F429IGT6 datasheet to get the pin configuration
Core:
Arm® 32-bit Cortex®-M4 CPU with FPU, Adaptive real-time accelerator (ART Accelerator™) allowing 0-wait state execution from Flash memory, frequency up to 180 MHz, MPU, 225 DMIPS/1.25 DMIPS/MHz (Dhrystone 2.1), and DSP instructions
Memories
Up to 2 MB of Flash memory is organized into two banks allowing read-while-write
Up to 256+4 KB of SRAM including 64-KB of CCM (core coupled memory) data RAM
Flexible external memory controller with up to 32-bit data bus: SRAM, PSRAM, SDRAM/LPSDR SDRAM, Compact Flash/NOR/NAND memories
LCD parallel interface, 8080/6800 modes
LCD-TFT controller with fully programmable resolution (total width up to 4096 pixels, total height up to 2048 lines and pixel clock up to 83 MHz)
Chrom-ART Accelerator™ for enhanced graphic content creation (DMA2D)
Clock, reset, and supply management
Low power
Debug mode
Up to 168 I/O ports with interrupt capability
Up to 21 communication interfaces
Advanced connectivity
STMicroelectronics STM32F429IGT6 technical specifications, attributes, and parameters.
RISC Microcontroller, 32-Bit, FLASH, CORTEX-M4F CPU, 180MHz, CMOS, PQFP176. MCU 32-bit ARM Cortex M4 RISC 1MB Flash 2.5V/3.3V 176-Pin LQFP Tray / IC MCU 32BIT 1MB FLASH 176LQFP. STM32F Series 1 MB Flash 256 kB RAM 180 MHz 32-Bit Microcontroller - LQFP-176.
Physical |
|
Case/Package |
LQFP |
Number of Pins |
176 |
Technical |
|
Core Architecture |
ARM |
Data Bus Width |
32 b |
Flash Memory Size |
1 MB |
Frequency |
180 MHz |
Interface |
CAN, EBI/EMI, Ethernet, I2C, I2S, IrDA, LIN, SDIO, SPI, UART, USART, USB |
Max Frequency |
180 MHz |
Max Operating Temperature |
85 °C |
Max Power Dissipation |
526 mW |
Max Supply Voltage |
3.6 V |
Memory Size |
1 MB |
Memory Type |
FLASH |
Min Operating Temperature |
-40 °C |
Min Supply Voltage |
1.8 V |
Nominal Supply Current |
1.7 µA |
Number of A/D Converters |
3 |
Number of ADC Channels |
24 |
Number of Channels |
24 |
Number of D/A Converters |
2 |
Number of Ethernet Channels |
1 |
Number of I2C Channels |
3 |
Number of I/Os |
140 |
Number of Programmable I/O |
140 |
Number of SPI Channels |
3 |
Number of Timers/Counters |
2 |
Number of UART Channels |
2 |
Number of USART Channels |
4 |
Number of USB Channels |
2 |
Oscillator Type |
Internal |
Peripherals |
Brown-out Detect/Reset, DMA, LCD, POR, PWM, WDT |
RAM Size |
256 kB |
Schedule B |
8542310000 |
Watchdog Timer |
Yes |
Dimensions |
|
Height |
1.45 mm |
Length |
24.1 mm |
Width |
24.1 mm |
Compliance |
|
Lead-Free |
Lead-Free |
Radiation Hardening |
No |
REACH SVHC |
No SVHC |
Supply Chain |
|
Lifecycle Status |
Production (Last Updated: 2 years ago) |
Symbol

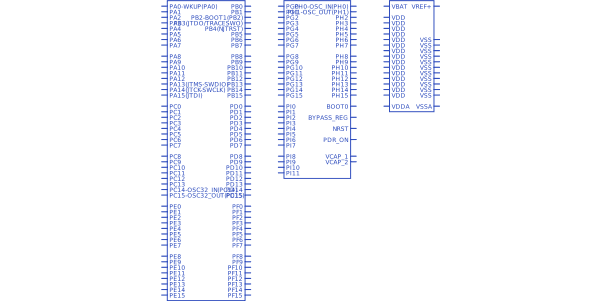

Figure2-Symbol
PCB Footprint
Figure3-PCB Footprint
Figure4-Circuit Diagram
