lithium 3.0V CR2450 batteries are frequently used as non-rechargeable button/coin cells. We can find it in In watches, computer motherboards, medical equipment, LED lamps, toys, remote controls, car remote keys, security systems, wearable electronics, etc., This post will explore 10 frequently questions asked about CR2450 batteries as well as a comparison with CR2032.
Use Rechargeable Coin Cell Battery For SmartThings Smarthome Sensors | CR2450 To LIR2450
Catalog
CR2450 is a non-rechargeable button battery of the CR family series. CR2450 button lithium battery, named according to IEC standard. C- is a chemical battery system with lithium metal as the negative electrode and manganese dioxide as the positive electrode. CR- indicates that the battery's shape is a button. 2450 represents the standard size of the battery, the name of the button battery is the first two digits (one digit below 10mm) is the diameter, and the last two digits are the thickness. 24 in 2450 means the diameter is 24mm, 5 means the height of the battery is 5mm, and 0 means the shape of the battery is cylindrical.

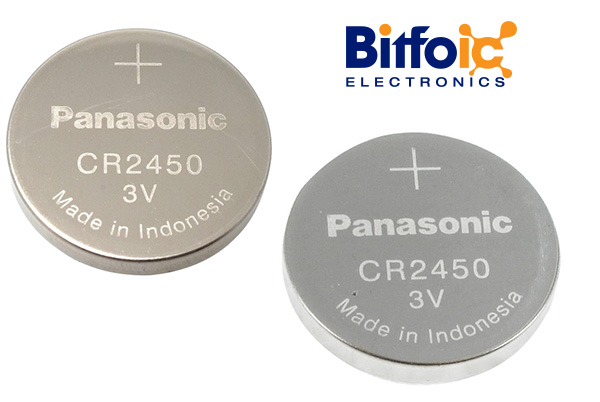

Figure1-CR2450
Item |
Performance characteristics |
Nominal Voltage (V) |
3 |
Nominal Capacity (mAh) |
620 |
Continuous Standard Drain (mA) |
0.2 |
Maximum Pulse Discharge Current (A) |
- |
Diameter (mm) |
24.5 |
Thickness (mm) |
- |
Height (mm) |
5.0 |
Weight(Approx.) (g) |
6.2 |
Operating Temperature (°C) |
-30 - 85 |
Type |
CR coin |
JIS |
CR2450 |
IEC |
CR2450 |
IEC 60086-4 |
Certified |
UL 1642 |
Certified |
Working current refers to the current value that the battery can output when it is working. The rated current value of CR2450 is 0.2mA, which is mainly used for low-power electronic products. Generally, the battery can provide an output current of 0.001mA to 5mA, and the continuous output current can reach 15mA, the flash output current can reach 30mA, which can meet the requirements of most small electronic products such as light emission, sound generation, and RF output.
ITEM |
ELEMENT |
Anode |
Manganese Dioxide Powder |
Colloid Graphite Powder |
Carbon nanotubes |
Cathode |
Lithium slice |
e Electrolyte |
Ethylene Glycol Dimethyl Ether |
Propylene Carbonate |
Dol |
Lithium Perchloride |
|
Rind |
Stainless steel shell |
others |
Fiberglass Septum, Acetylene Black |
No, the CR2450 cannot be replaced with CR2032. Even though they have the same voltage and chemical composition, due to differences in their dimensions, they cannot replace each other.
The battery compartment of any application has a default size. The CR2450 and CR2032 have a difference of 4 mm in diameter and 1.8 mm in thickness. So, inserting one battery into another battery’s compartment is practically difficult.

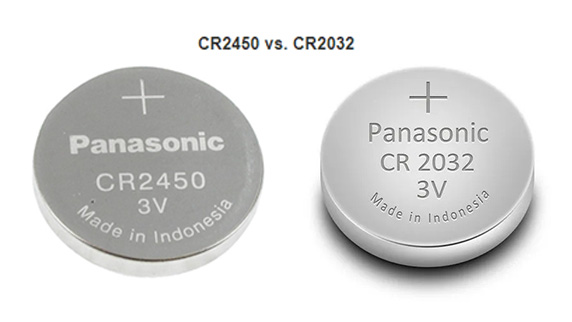

Figure2-CR2450 vs CR2032
LiR2450 is a typical label for rechargeable 2450 batteries. According to the exact chemistry used, the LiR2450 battery typically features nominal voltages of 3.0, 3.2, 3.6, and 3.7 volts. But only 3.0V rechargeable LiR2450 batteries have a similar (equivalent) output voltage that never goes over 3.0 volts and doesn't endanger delicate circuits. Therefore, it can be used as a direct substitute for CR2450 batteries.
How to use (connection method with PCB board)
Notes:
(1) Battery spot welding will generate high temperatures and pressure, which can easily damage the electrical performance of the battery. So, if you are not a professional manufacturer, please do not weld the battery.
(2) The spot-welded battery cannot be wave-soldered, which will cause the battery to be short-circuited and scrapped.
When identifying the type of button cell battery you may have, please be sure to differentiate between silver oxide and lithium or alkaline batteries. These batteries are identified by an alphanumeric code. Typically the first letters in the alphanumeric code will identify the type of battery. The first letters (LR) indicates an Alkaline battery and may be thrown in the trash. Batteries with the first letters (CR) indicate a Lithium battery, (and SR) indicates Silver Oxide which contains heavy metals. Batteries that are identified by a letter (P) are rechargeable and contain heavy metals and/or mercury. Button Cell batteries contain heavy metals or mercury and can be taken to any Household Hazardous Waste event or checked with a local home improvement store every Best Buy store has free kiosks, just inside the door, for customers to drop off rechargeable or button batteries for recycling.
Lithium batteries contain unstable chemical materials, such as lithium, organic solvents, and some chemical components. Misuse of lithium batteries may cause the battery to heat up, catch fire or explode, which may cause personal injury. To avoid accidents caused by using batteries, please read the following instructions carefully:
